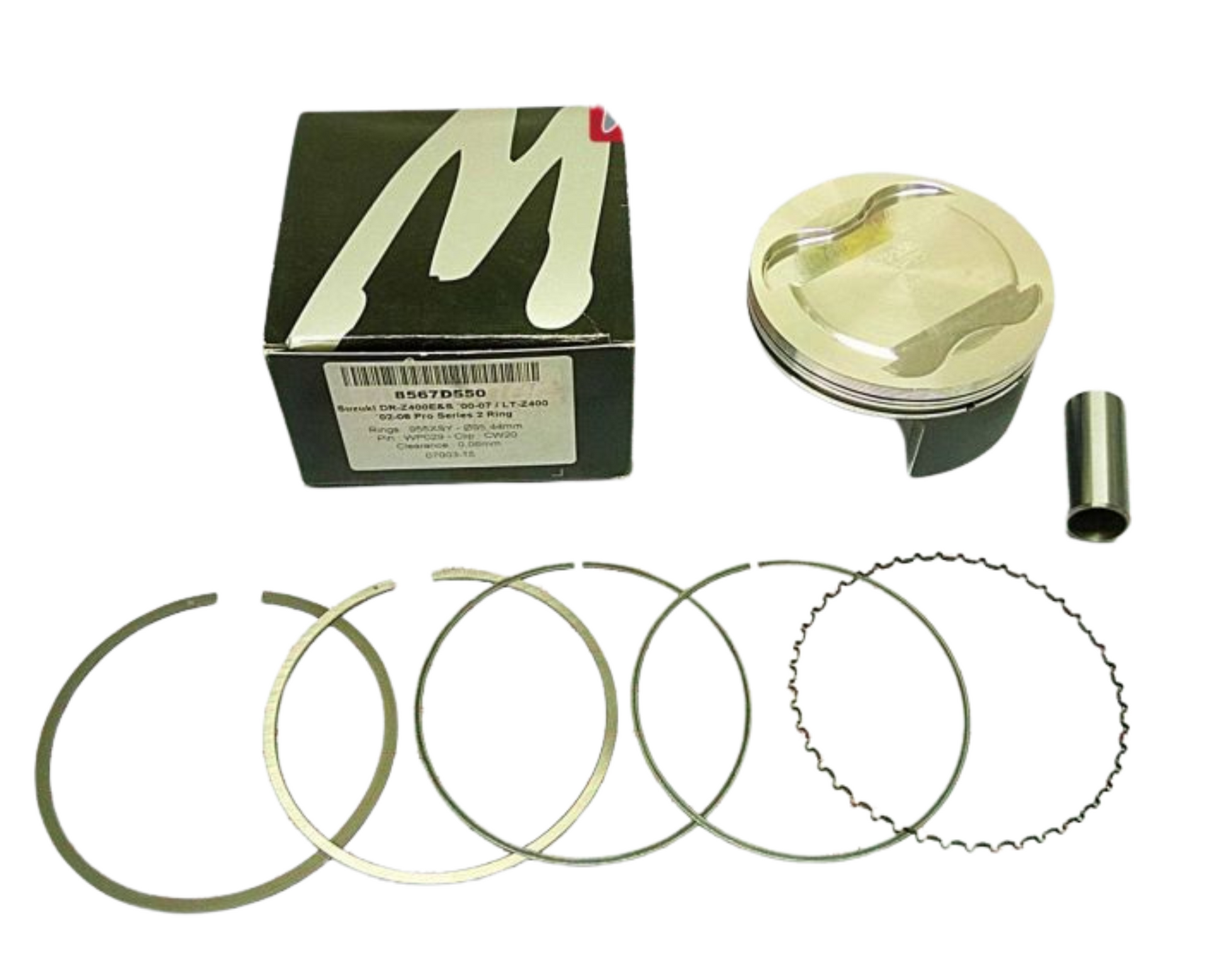

DRZ400 WOSSNER PISTON 00-14 90.00 HC, FORGED WOSSNER KIT 8567DA 13001-S006, 1211

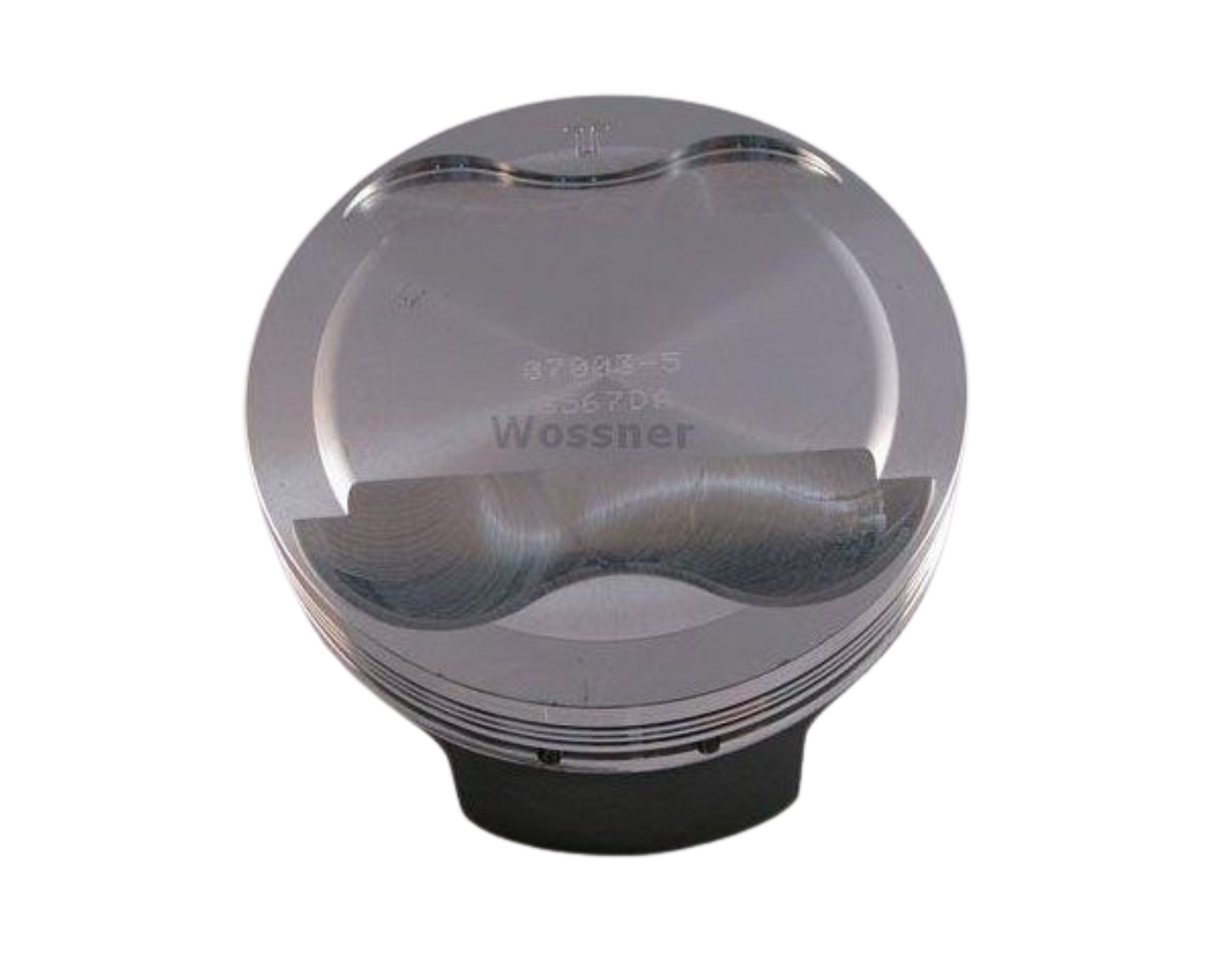

Piston Kit 90mm Bore 89.94 Wossner 8567DA (STD)

Suzuki
DR-Z 400E/DR-Z 400S 2000-2014,
DR-Z 400 S 2000,
DR-Z 400 S 2001,
DR-Z 400 E 2002,
DR-Z 400 S 2002,
LT-Z 400 2002,
DR-Z 400 E 2003,
(High Compression)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W030 (oro2u.com)
Lock P/N CW20
Pin P/N WP029
Ring Set P/N 900XSY

Display (cm3) 398
Hub stroke (mm) 62.60
Clearance (mm) 0.06
Wossner compression Ratio: 13.50:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) +0.50
Compression height (mm) 25.30
Theorectical weight (G) 247.00

Cross reference numbers ONLY.
13001-S006,   4714M09000, 12111-29F00-0F0
